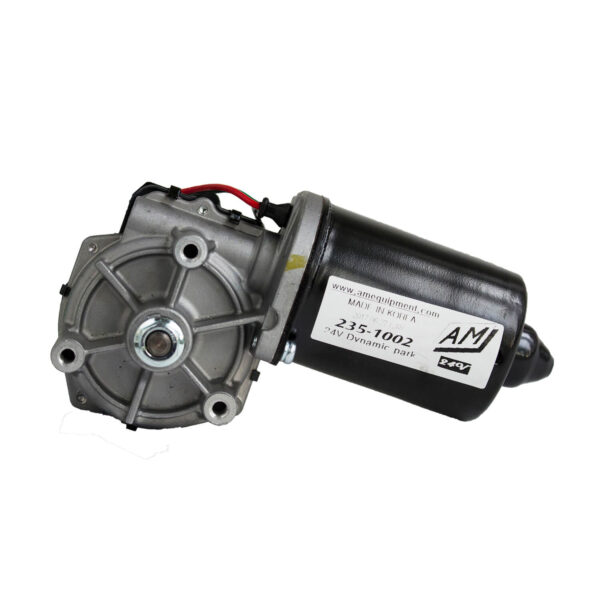

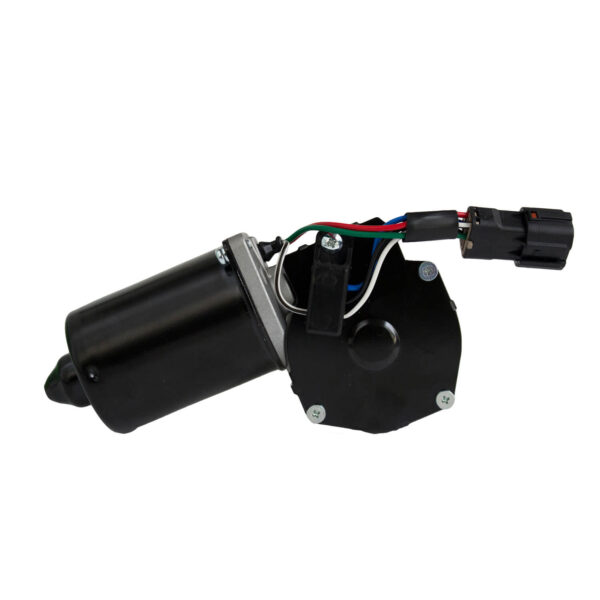

235 Series DC Gear Motor – obsolete – see 240 Wiper Motor

Replaced with 240 Wiper Series Gear Motor.

This product is currently out of stock and unavailable.

Description

*******  See 240 Series Wiper DC Gear Motor, for replacement options  *******

Voltage Stall: 12V or 24V

Torque: 35 Nm

No Load Oscillations/RPM: 34 RPM low-speed and 57 RPM high-speed

Weight: 2.6 lb

Industrial/Wiper: Industrial and Wiper



Product Details:

  • 35 Nm stall torque in low speed
  • LH housing
  • 12 V or 24 V
  • Two-speed motor (no-load low speed: 30 oscillations per minute; no-load high speed: 50 oscillations per minute)
  • Counterclockwise rotation
  • Internal thermal circuit breaker and RFI suppression

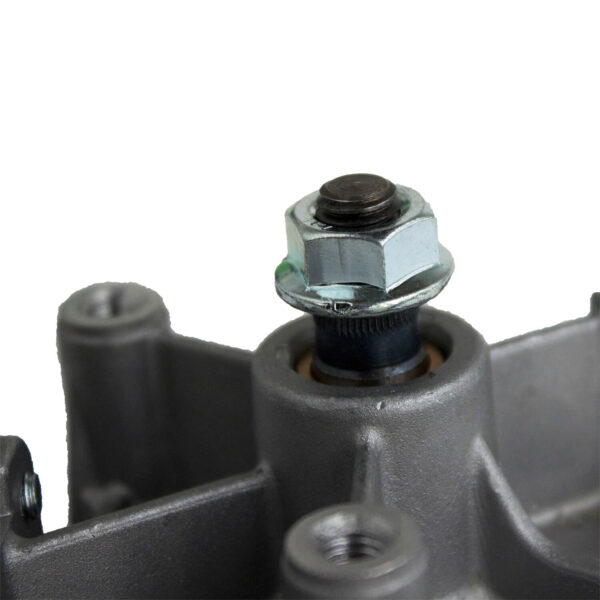

  • Output shaft is 11 mm with a DIN 3:1 splined taper
  • Includes output shaft nut
  • 2.6 pounds
  • Download engineering prints here

Additional information

Motor Type

235-1001, 12 V, 235-1002, 24 V
