Description

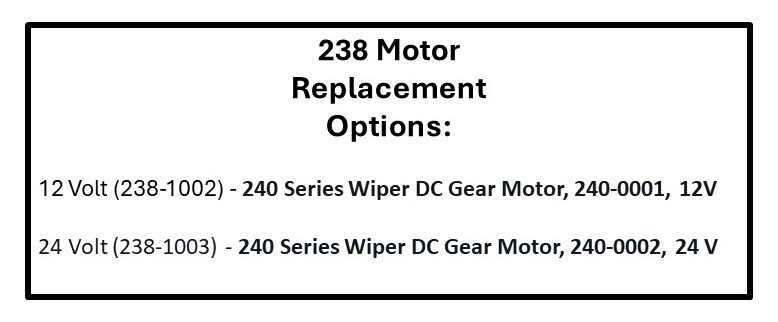

******* See 240 Series Wiper DC Gear Motor, for replacement options *******
Voltage Stall: 12V or 24V
Torque: 38 Nm
No Load Oscillations/RPM: 41 RPM low-speed and 69 RPM high-speed
Weight: 2.6 lb
Industrial/Wiper: Industrial and Wiper
Product Details:
- 38 Nm stall torque in low speed
- LH housing
- 12 V or 24 V
- Two-speed motor (no-load low speed: 38 oscillations per minute; no-load high speed: 60 oscillations per minute)
- Counterclockwise rotation
- Internal thermal circuit breaker and RFI suppression

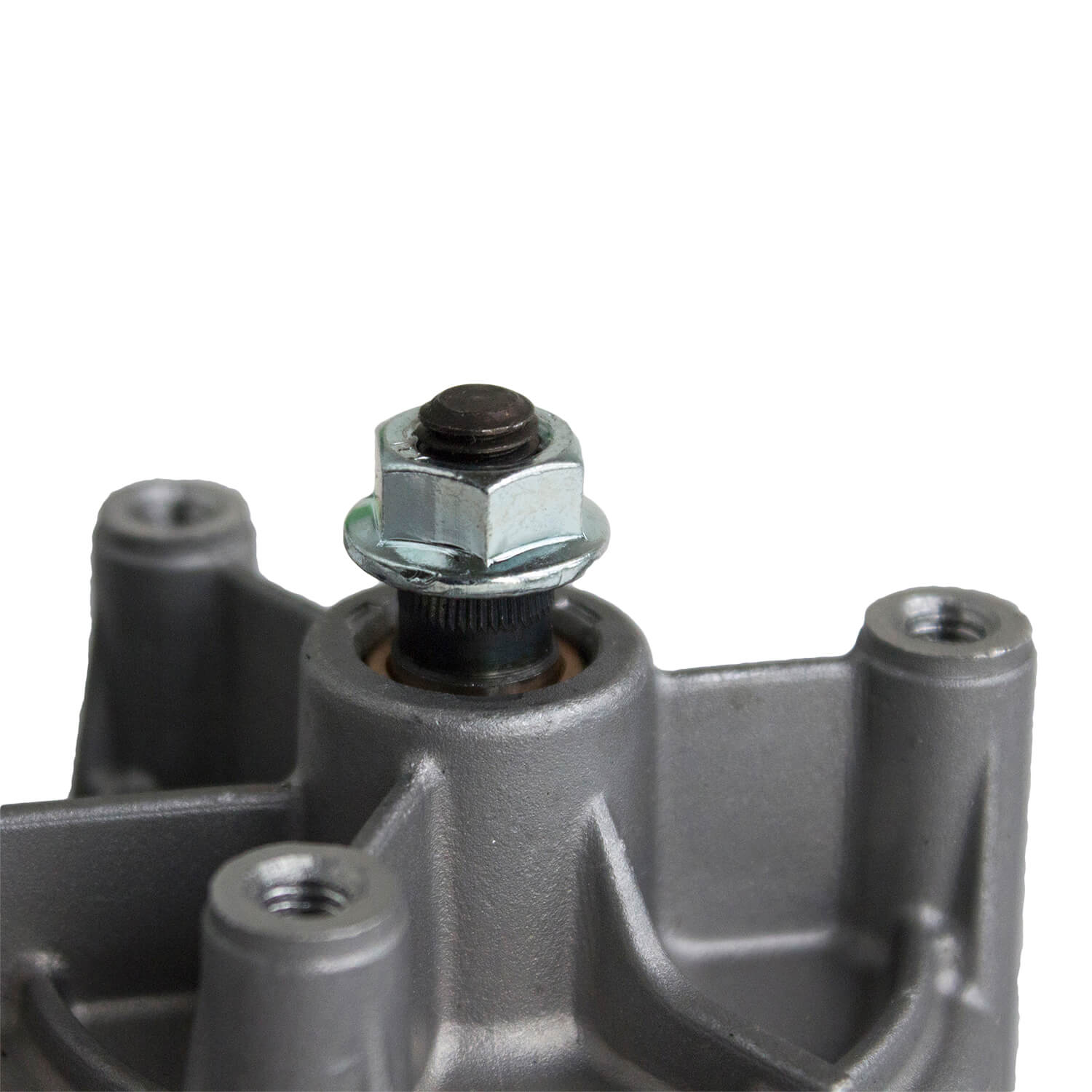

- Output shaft is 11 mm with a DIN 3:1 splined taper
- Includes output shaft nut
- 2.6 pounds
- Download engineering prints here
