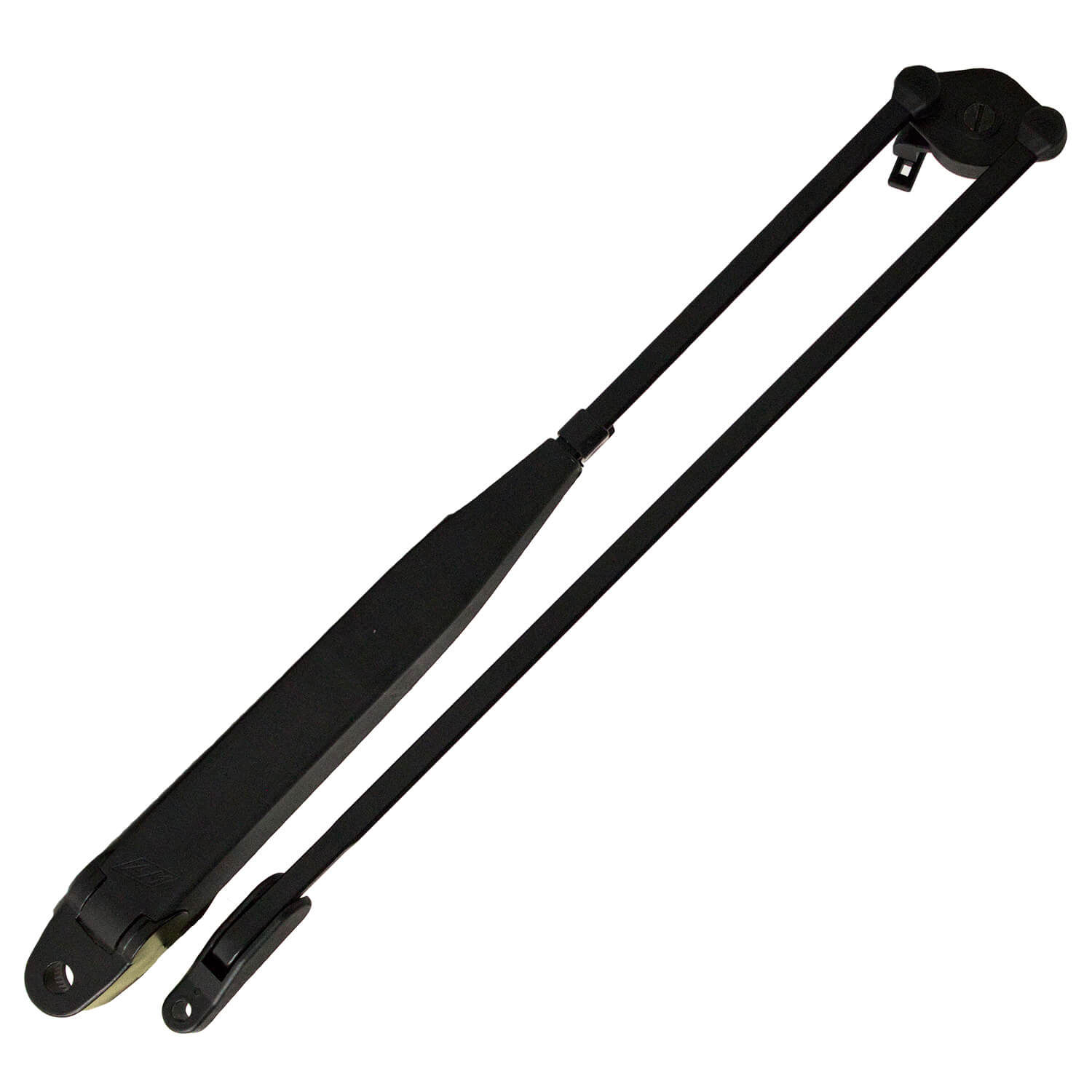

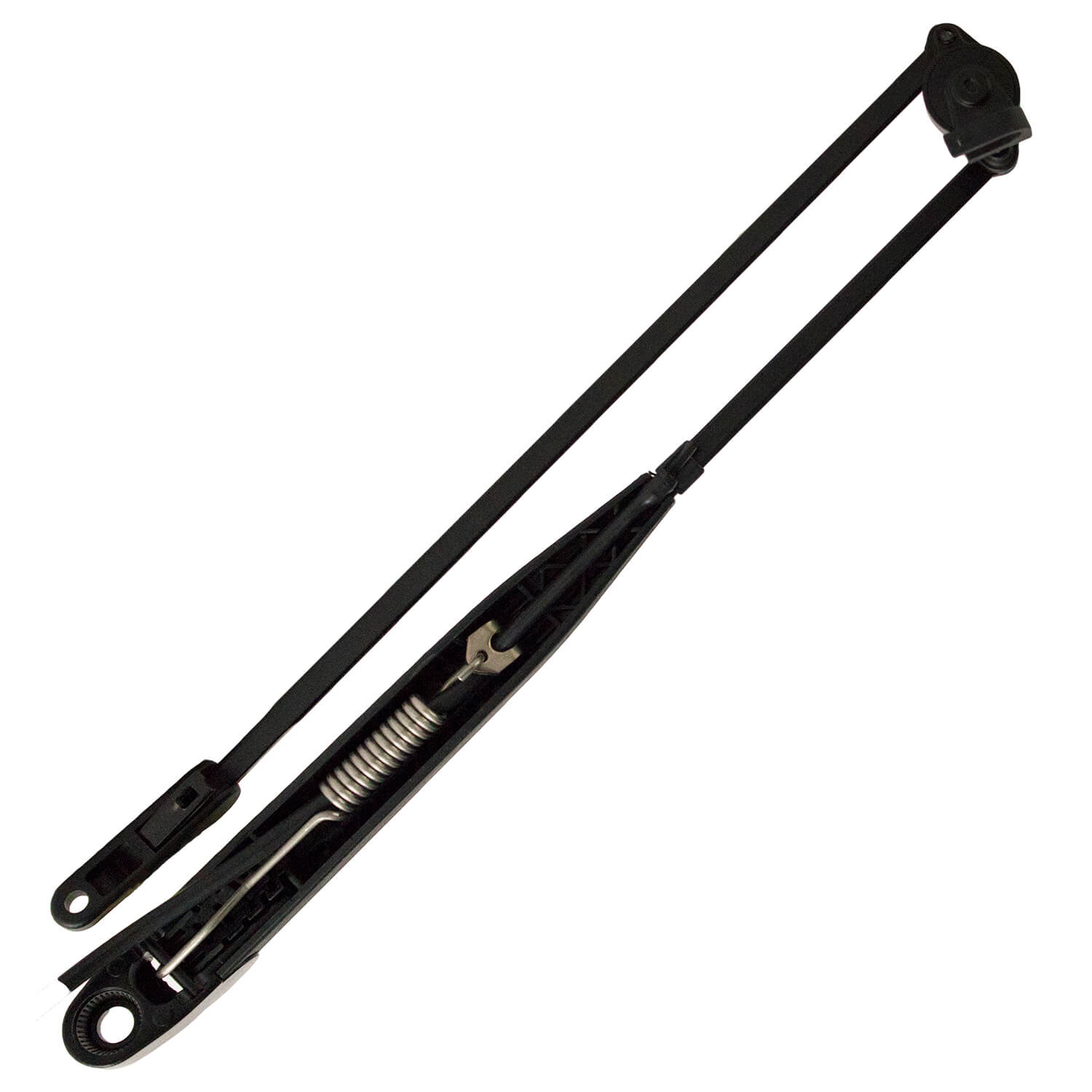

Standard Duty Pantograph Wiper Arm, Dry, Tapered Knurl Interface, 1.75″ Bridge Width

$97.65

Description

Product Details:

Note: all wiper arms are custom-built and have a two-week lead time.

  • Meets or exceeds FMVSS and SAE standards
  • Channel is made of UV stabilized composite; extension is powder coated stainless steel; mounting head is cast aluminum; matte black finish; tension spring is stainless steel

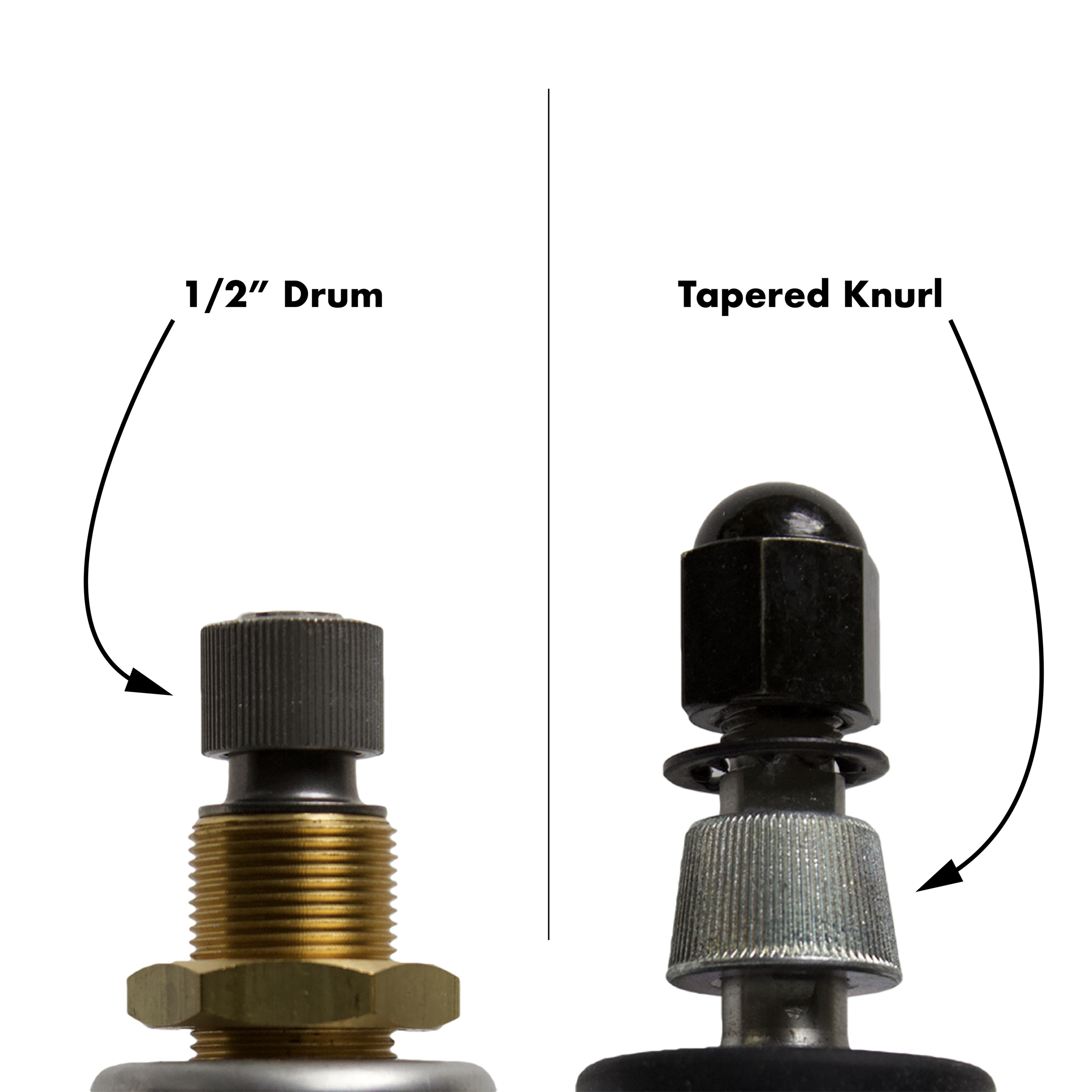

  • Compatible with tapered knurl pivot shafts
  • 9×4 mm hookslot blade attachment (add the Saddle Attachment Kit for use with 14 mm saddle-type blades)
  • Fixed arm length up to 710 mm (28″)
  • Adjustable blade angle
  • 44.5 mm (1.75″) bridge width
  • Dry wiper arm, not equipped with a spray nozzle

Additional information

Arm Length

352-0074, 300 mm (12"), 352-0076. 330 mm (13"), 352-0085, 350 mm (14"), 352-0058, 400 mm (16"), 352-0121, 430 mm (17"), 352-0059, 450 mm (18"), 352-0057, 510 mm (20"), 352-0330. 560 mm (22"), 352-0351, 580 mm (23"), 352-0061, 610 mm (24"), 352-0062, 630 mm (25"), 352-0056, 660 mm (26"), 352-0063, 710 mm (28")
