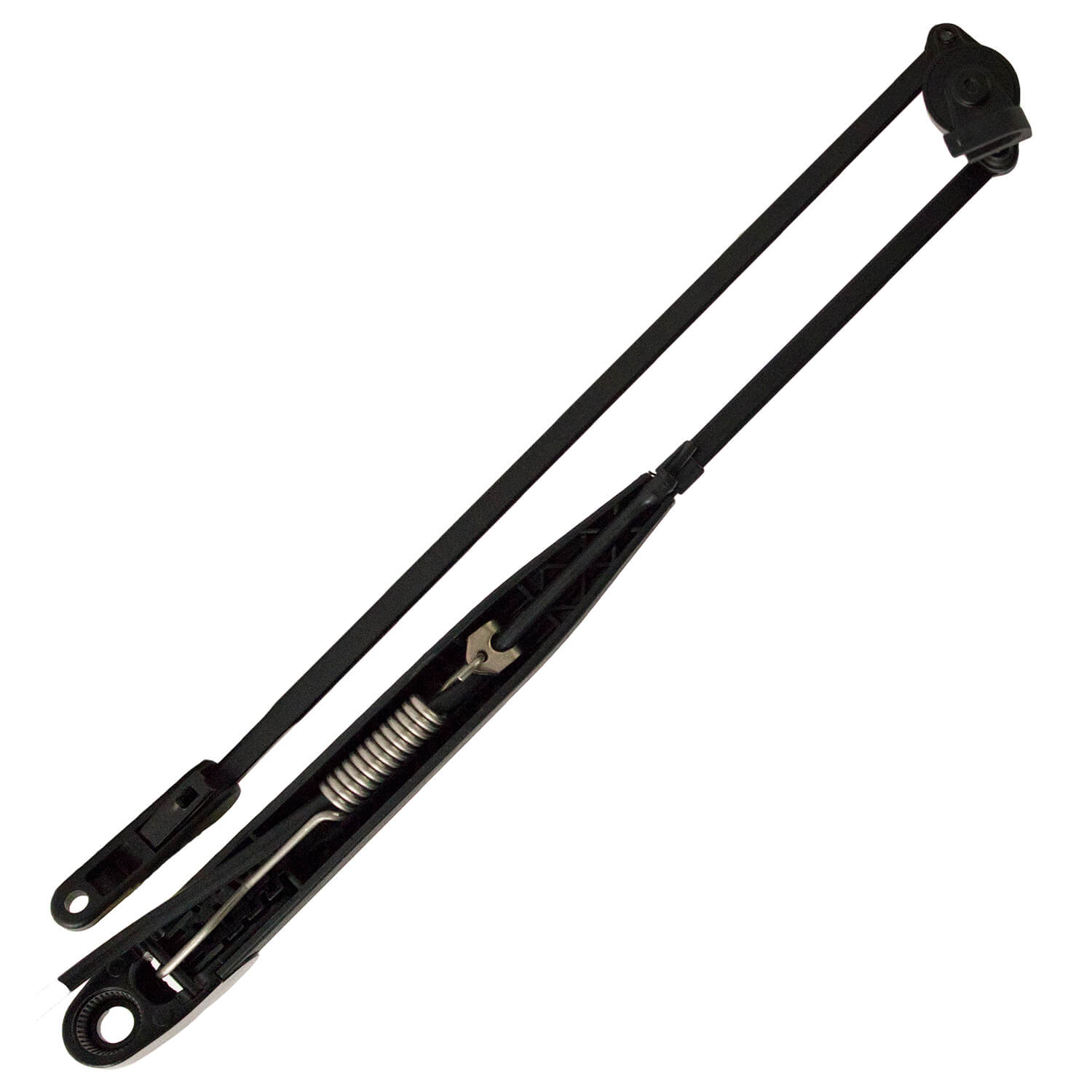

Standard Duty Pantograph Wiper Arm, Wet, Tapered Knurl Interface, 1.75″ Bridge Width

$97.65

Description

Product Details:

Note: all wiper arms are custom-built and have a two-week lead time.

  • Meets or exceeds FMVSS and SAE standards
  • Channel is made of UV stabilized composite; extension is powder coated stainless steel; mounting head is cast aluminum; matte black finish; tension spring is stainless steel

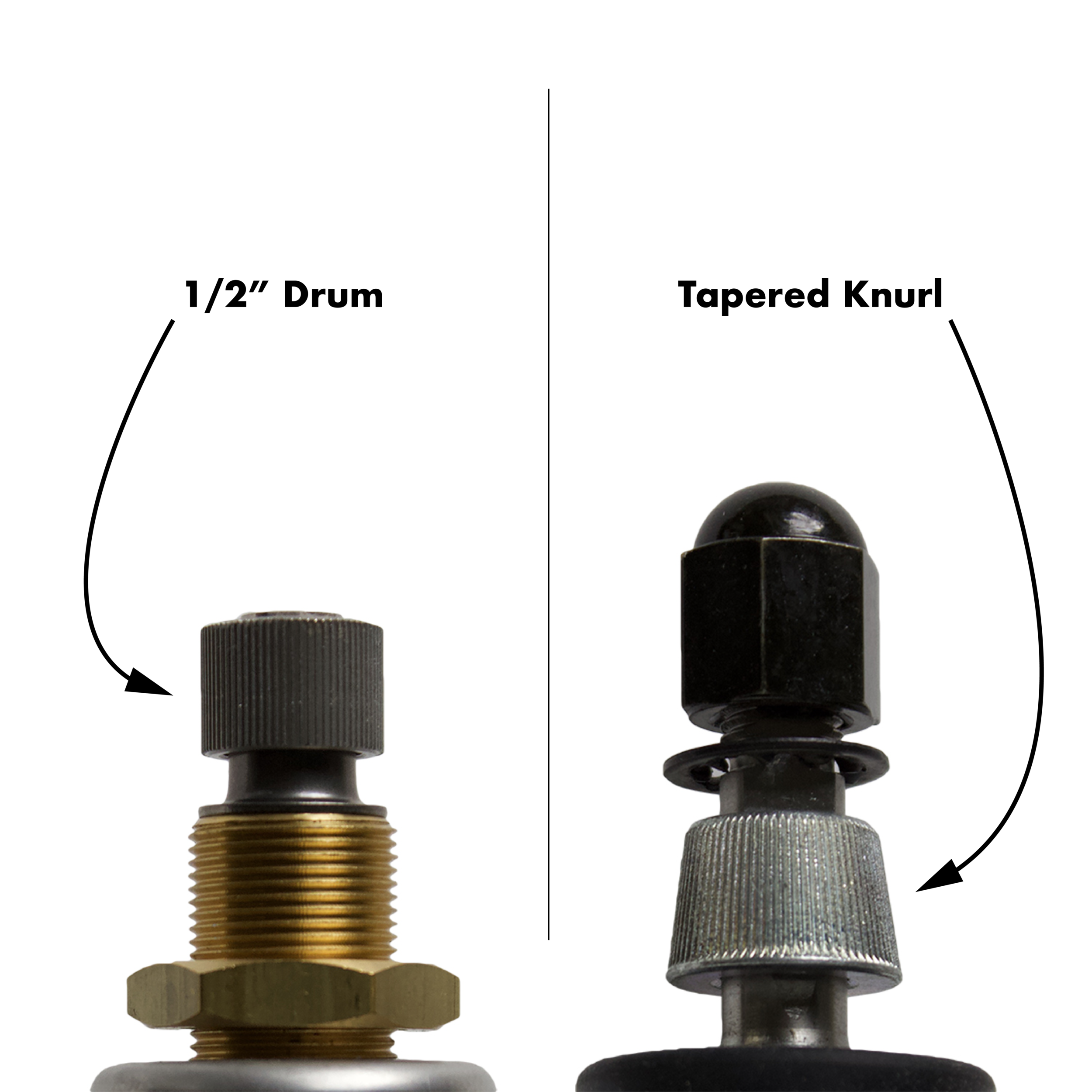

  • Compatible with tapered knurl pivot shafts
  • 9×4 mm hookslot blade attachment (add the Saddle Attachment Kit for use with 14 mm saddle-type blades)
  • Wet wiper arm kit features internal through-channel hose routing and channel-mounted one-jet spray nozzle
  • Fixed arm length up to 710 mm (28″)
  • Adjustable blade angle
  • 44.5 mm (1.75″) bridge width

Additional information

Arm Length

352-0176, 330 mm (13"), 352-0039, 350 mm (14"), 352-0042, 380 mm (15"), 352-0043, 400 mm (16"), 352-0105 430 mm (17"), 352-0066, 450 mm (18"), 352-0077, 480 mm (19"), 352-0041, 510 mm (20"), 352-0064, 530 mm (21"), 352-0044, 560 mm (22*), 352-0324, 580 mm (23"), 352-0047. 610 mm (24"'), 352-0117. 630 mm (25"), 352-0048. 660 mm (26"), 352-0034, 710 mm (28")
